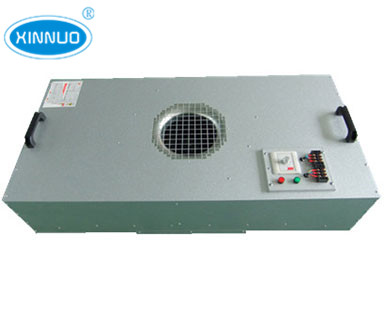

FFU系列風機過濾器單元
Head fan filter unit series
特點Features
●運行成本低、使用方便
●獨特的低振動、低噪音
●風速均勻、風機可調
●風機箱和過濾器分體，更換拆卸方便
●Low operating cost, convenient use
●The unique low vibration, low noise
●Adjustable speed, fan
●Fan box and filter fission, easy replacement
產品介紹 Product introduction
本公司生產的FFU系列風機過濾器單元是采用國內最新技術，適用于在100000-1000級環境中獲得最高100級的潔凈環境，它為不同尺寸大小、不同潔凈度等級的潔凈室、微環境提供高質量的潔凈空氣。廣泛應用于潔凈室、潔凈工作臺、潔凈生產線、組裝式潔凈室和層流罩等應用場合。高科技、人性化的計算機軟件系統，可以通過一臺單獨的中央計算機監控系統，對多達7905臺的FFU進行監控，同時也可以根據顧客要求來設計額外的監控系統。特別適合于組裝成超凈生產線，可根據工藝需要布置為單臺使用，也可將多臺串聯形成100級流水裝配線
This company produces the head fan filter unit is the series of domestic newest technology, suitable for 100,000-1000 magnitude environment and obtain the highest grade of clean environment.100, it is different for different size, cleanliness level of cleanroom microenvironment, provide high quality and clean air. Widely applied in cleanrooms, clean bench, clean production, the assembly type clean room and laminar covers and other applications High-tech and humanization of computer software system, can a single central computer monitoring system, the head of 7905 up, also can design according to customer requirements for additional monitoring system. Particularly suited to assemble line, can according to the super net technology for single use to decorate, also can be formed many series 100 level assembly line
構成材料及技術參數Constitute the material and technical parameter
●框材：、覆鋁鋅板、冷板噴塑、不銹鋼
●External frane：Stainless steel or cooling-plate pensu
●風機：低振動、低噪音進口EBM風機
●Fan: low vibration, low noise, EBM fan
●風速：0.4-0.8m/s
●Winds: 0.4-0.8 m/s
●凈化最高級別：100級
●Purification at the highest level: 100 levels
●高效濾芯：國產玻纖濾紙或HV濾紙
●Efficient filter: domestic glass fiber filter proposed.and or filter
●系統控制模式：交流控制和直流控制
●System control mode: exchange control and direct control
●使用最高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數（Standard specification）
型號model 參數Parameters | XN-FFU-122S | XN-FFU-117S | XN-FFU-91S | XN-FFU-87S | |||
XN-FFU-122Z | XN-FFU-117Z | XN-FFU-91Z | XN-FFU-87Z | ||||
額定風量 Nominal volume (m3/h) | 1200 | 1000 | 900 | 750 | |||
噪音NoiseDb(A) | 52~56 | ||||||
高效過濾器效率 Hepa filter efficiency | ≥99.99% ~ 99.9995%（@≥0.3μm） | ||||||
電源power | AC220V±10%,1φ,50HZ±2HZ | ||||||
輸入功率 The input power (W) | 180 | 180 | 180 | 180 | |||
外型尺寸L*W*H Envelop dimensions | 1220*610*320 | 1170*570*320 | 915*610*320 | 870*570*320 | |||
高效過濾器規格 Hepa filter specifications | 1220*610*69 | 1170*570*69 | 6915*610*69 | 870*570*69 | |||
粗效過濾器規格 Coarse efficiency filters specifications | 360*360*8/10 | 360*360*8/10 | 360*360*8/10 | 360*360*8/10 | |||
