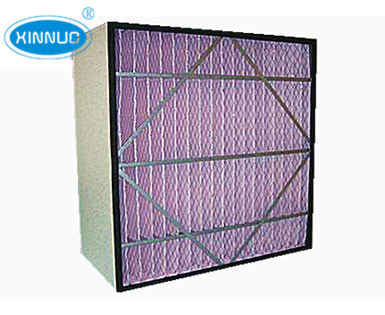

中效箱式空氣過濾器
Effect of air filter box
特點：Features
●使用壽命長
●阻力小、風量較大
●容塵量大
●廣泛運用于空調系統的中級過濾
●Long service life
●Small resistance, air is bigger
●Let the dust
●Widely used in air conditioning system
adopts the intermediate filtration
構成材料及運行條件
Materials and operating conditions
●框材：鋁合金或鍍鋅板外框
●External frane：Aluminum alloy steel or frame
●分隔物：塑膠插片
●Space: plastic inserted
●覆網：鋁網或鍍鋅網
●Reply: aluminum or galvanized mesh
●濾料材質：新型復合無紡布
●Filter material: new composite nonwoven fabric
●濾料顏色：F5(白色)45%（淺黃色）、F6(綠色)65%（桔紅色）、F7(粉紅色)85%（紫色）、F8(淺黃色)95%（深黃色）
●Liao color: The F5 (white) 45% (yellow), F6 (green) 65% (orange),F7 (pink) 85% (purple), F8 (yellow) 95% (deep yellow)
●密封條：醋酸乙酯
●Gasket：EVA
●密封物：聚胺脂膠
●Sealant：Gel-glue
●使用最高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
型號 model | 外形尺寸 Outside Dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Initial resistance(Pa) | 效率（級別） Efficiency (class) | 濾料顏色 Liao color | 折數 Fold number |
XN-13 | 495×295×295mm 20″×12″×12″ | 1300m3/h |
50Pa F5
55Pa F6
60Pa F7
65Pa F8
| 40-50% F5
60-70% F6
75-85% F7
85-95% F8 （比色法） colorimetric | 白色F5 White 綠色F6 Green 粉紅F7 pink 淺黃F8 yellow | 8 |
XN-22 | 495×495×295mm 20″×20″×12″ | 2200m3/h | 10 | |||
XN-16 | 595×295×295mm 24″×12″×12″ | 1600m3/h | 14 | |||
XN-27 | 595×495×295mm 24″×20″×12″ | 2700m3/h | 14 | |||
XN-32 | 595×595×295mm 24″×24″×12″ | 3200m3/h | 18 |
