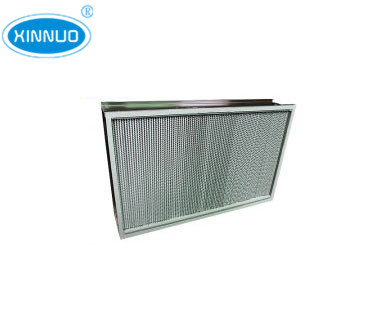

耐400°高溫高效空氣過濾器
High temperature resistant 400℃hepa air filter
特點Features
●阻力低、容塵量大
●耐400°高溫，性能穩定，不裂開，不粉化
●主要用于制藥企業,西林、粉針玻璃容器高溫消毒潔凈烤箱設備.
●Low resistance,high-dust capacity
●The highest tem.400℃,strong performance,no pulverization and crack etc.
●Be main used in pharmaceutical industry,high temperature sterilization oven purify equipment of amoxicillin power、power needle glass capsule
構成材料及運行條件Material and operation conditions
●框材：304/316不銹鋼外框
●External frame：304/316 stainless steel
●密封物：耐400°以上高溫?zé)o機膠合成物
●Sealant：high temperatureresistant (>400℃)inorganic bonding compounds
●密封條：耐400°以上高溫密封氈
●Gasket:High temperature resistant 400℃sealing mat
●分隔物：鋁箔
●Seperator：Aluminum foil
●濾料：耐400°高溫玻纖濾紙
●Filter media:high temperature resistant 400℃fiberglass media
●使用最高溫度：350~400℃
●Using the highest temperature：350-400℃
型號尺寸及其他參數(Standard specification )
型號 model | 外形尺寸 Outside dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Imitial resistance (Pa) | 效率（比色法） Efficiency (%) | 容塵量 Dust capacity (g) |
XN-7.5J | 610×457×150 | 750 | ≤200 | ≥99.99 | 600 |
XN-10J | 610×610×150 | 1000 | ≤200 | ≥99.99 | 350 |
XN-15J | 610×457×292 | 1500 | ≤200 | ≥99.99 | 400 |
XN-20J | 610×610×292 | 2000 | ≤200 | ≥99.99 | 600 |
