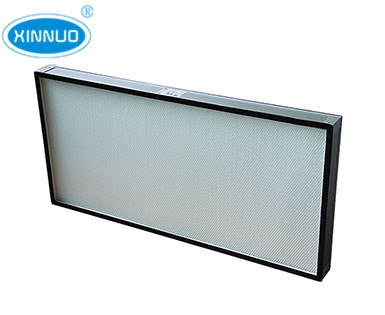

超高效空氣過濾器
Super efficient air filter
特點Features
●效率超高、阻力高
●重量輕、安裝方便
●適用于電子、制藥、食品等百級及百級以上的空氣凈化末端
●Efficiency high, high resistance
●Light weight, convenient installation
●Suitable for electronic, pharmaceutical, food and other 100 level and 100 + air purification ends
構成材料及運行條件
Materials and operating conditions
●框材：鋁合金外框
●External frane：Aluminum alloy frame
●密封物：聚胺脂膠
●Sealant：Gel-glue
●分隔物：熱熔膠
●Filter media：Hot-melt
●密封條：醋酸乙酯
●Gasket：EVA
●濾料：玻纖濾紙
●Filter media：Glass fiber
●使用最高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數(shù)
Standard specification
型號 model | 外形尺寸 Outside dimensions (mm) | 額定風量 Rated air flow (m3/h) | 初阻力 Imitial resistance (Pa) | 效率 Efficiency | 容塵量 Dust capacity (g) | |||
XN-5J | 610×610×50 | 500 | ≤250~280 | U15、U16 | 450 | |||
XN-7J1 | 915×610×50 | 700 | ≤250~280 | U15、U16 | 680 | |||
XN-10J | 1220×610×50 | 1000 | ≤250~280 | U15、U16 | 900 | |||
XN-7J | 610×610×69 | 700 | ≤250~280 | U15、U16 | 560 | |||
XN-10J | 915×610×69 | 1000 | ≤250~280 | U15、U16 | 840 | |||
XN-14J | 1220×610×69 | 1400 | ≤250~280 | U15、U16 | 1120 | |||
XN-8J | 610×610×80 | 800 | ≤250~280 | U15、U16 | 650 | |||
XN-9J | 610×610×90 | 900 | ≤250~280 | U15、U16 | 750 | |||
XN-11J | 610×610×100 | 1100 | ≤250~280 | U15、U16 | 850 | |||
XN-12J | 1170×570×69 | 1200 | ≤250~280 | U15、U16 | 1000 | |||
XN-14J | 1170×570×80 | 1400 | ≤250~280 | U15、U16 | 1250 | |||
XN-16J | 1220×610×80 | 1600 | ≤250~280 | U15、U16 | 1300 | |||
XN-18J | 1220×610×90 | 1800 | ≤250~280 | U15、U16 | 1500 | |||
